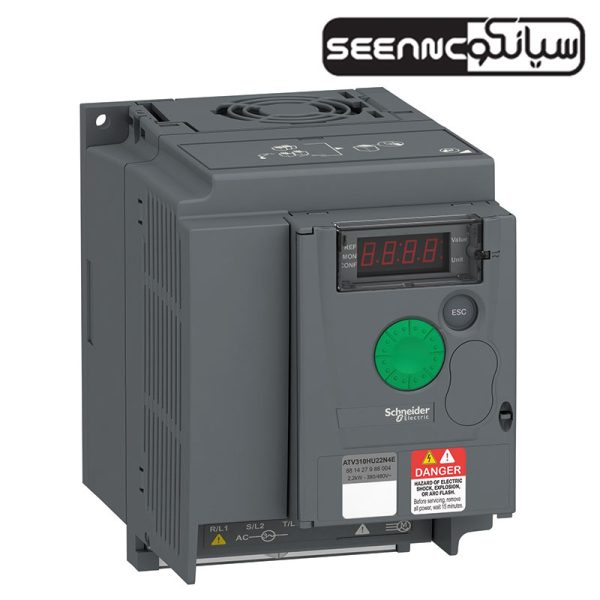

معرفی و خرید اینورتر سه فاز اشنایدر فرانسه مدل ATV310HU22N4E

اینورتر سه فاز اشنایدر مدل ATV310HU22N4E یکی از سری های آلتیوار 310 با رنج توانی از 0.37 کیلووات / 0.5 اسب بخار تا 11 کیلووات / 15 اسب بخار می باشد. درایو آلتیوار 310 یک اینورتر فرکانس برای موتورهای ناهمزمان سه فاز 380… 460 ولت ورودی و همچنین ولتاژ سه فاز 400 ولت خروجی است. این اینورتر دارای جریان ورودی 8.8 آمپر و جریان خروجی 5.5 آمپر می باشد. بازه تغییر فرکانس خروجی این مدل اینورتر اشنایدر بین 0.5 تا 400 Hz می باشد.
طراحی داریوهای ATV 310 به گونه ای است که قابلیت بسیار بالایی برای استفاده در محیط های کوچک و فضاهای اندک و یا در تابلوهای برق با فضای اندک رک ها دارد. از دیگر قابلیت های این درایو می توان به زمان و هزینه راه اندازی پایین، مدار سیم کشی واضح و ترمینال های ایزوله و همچنین قابلیت Play & Plug اشاره کرد.
گروه صنعتی سیانکو به عنوان عرضه کننده تجهیزات اندازه گیری و ابزار دقیق صنعتی و نمایندگی فروش برند های معتبر بین المللی انواع رله،کلید حرارتی و کامپکت، سافت استارتر و درایو اشنایدر الکتریک فرانسه را همراه با گارانتی و قیمت مناسب در بازار ایران تامین و توزیع می کند.

ویژگی های فنی اینورتر سه فاز Easy Altivar 310 اشنایدر فرانسه مدل ATV310HU22N4E

اندازه کوچک و مناسب برای محیط های کاری و انواع راک و کابینت و تابلو برق
زمان و هزینه راه اندازی پایین همراه با امکان خطایابی سریع
دارای 4 ورودی دیجیتال و یک ورودی آنالوگ
دارای یک رله خروجی و یک خروجی آنالوگ
دارای فن خنک کننده
مدهای کنترلی V/F، SVC
کاهش نویز موتور
نصب سریع و آسان دارای ارتباط یکپارچه Modbus و همراه با علامت های اختصاری بین المللی
قابلیت افزایش گشتاور 150 الی 170 درصد
دارای کنترلر PID داخلی
راه اندازی و استفاده آسان، دارای نقشه اتصال مدار، دارای کنسول Multi-Loader
طراحی خاص و مستحکم مناسب برای انواع سیستم های جریان هوا و مقاومت در برابر اختلال منابع تغذیه و مقاوم در باربر دمای ۵۵ درجه سانتیگراد و تضمین طول عمر ۱۰ ساله
قابلیت محدودسازی جریان و کنترل افزایش ولتاژ لینک DC
قابلیت های حفاظتی در برابر اتصال کوتاه، اضافه جریان، افزایش و کاهش ولتاژ و همچنین محافظت از درایو و موتور در برابر افزایش دمای بیش از حد
درجه حفاظتی IP20





جدول مشخصات اینورتر سه فاز Easy Altivar 310 اشنایدر فرانسه مدل ATV310HU22N4E



Easy Altivar 310

Range of product

Variable speed drive

Product or component type

Simple machine

Product specific application

With heat sink

Assembly style

ATV310

Device short name

Three phase

Network number of phases

380…460 V – 15…10 %

[Us] rated supply voltage

2.2kW

Motor power kW

3hp

Motor power hp

50dB

Noise level





Asynchronous motors

Product destination

Set of 1

Quantity per set

Without EMC filter

EMC filter

Integrated fan

Type of cooling

50/60 Hz +/- 5 %

Supply frequency

Modbus

Communication port protocol

RJ45 (on front face) for Modbus

Connector type

2wire RS 485 for Modbus

Physical interface

RTU for Modbus

Transmission frame

4800bit/s

9600bit/s

19200bit/s

38400bit/s

Transmission rate

1…247 for Modbus

Number of addresses

Read holding registers (03) 29 words

Write single register (06) 29 words

Write multiple registers (16) 27 words

Read/write multiple registers (23) 4/4 words

Read device identification (43)

Communication service

7.2A

46.6A

Line current

5.7kVA

31.2kVA

Apparent power

5kA

5kA

Prospective line Isc

5.5A at 4 kHz

36A at 4 kHz

Continuous output current

8.3A for 60 s

39.6A for 60 s

Maximum transient current

66.32W at In

517.6W at In

Power dissipation in W

0.5…400 Hz

Speed drive output frequency

4kHz

Nominal switching frequency

2…12 kHz adjustable

Switching frequency

1…20

Speed range

 170…200 % of nominal motor torque depending on drive rating and type of motor

Transient overtorque

Up to 150 % of nominal motor torque with braking resistor at high inertia

Up to 70 % of nominal motor torque without braking resistor

Braking torque

Quadratic voltage/frequency ratio

Energy saving ratio

Sensorless flux vector control

Asynchronous motor control profile

Preset in factory

Adjustable

Motor slip compensation

380…460 V three phase

Output voltage

Terminal, clamping capacity: 1.5…2.5 mm² (L1, L2, L3, PA/+, PB, U, V, W)

Electrical connection

0.8…1 N.m

Tightening torque

Electrical between power and control

Insulation

Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and shortcircuit protection

Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection

Supply

1

Analogue input number

Configurable current AI1 0…20 mA 250 Ohm

Configurable voltage AI1 0…10 V 30 kOhm

Configurable voltage AI1 0…5 V 30 kOhm

Analogue input type

4

Discrete input number

Programmable LI1…LI4 24 V 18…30 V

Discrete input type

Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm

Positive logic (source), 0…< 5 V (state 0), > 11 V (state 1)

Discrete input logic

10 ms for analogue input

20 ms, tolerance +/- 1 ms for logic input

Sampling duration

+/- 0.3 % of maximum value for analogue input

Linearity error

1

Analogue output number

AO1 software-configurable voltage: 0…10 V, impedance: 470 Ohm, resolution 8 bits

AO1 software-configurable current: 0…20 mA, impedance: 800 Ohm, resolution 8 bits

Analogue output type

2

Discrete output number

Logic output LO+, LOProtected

relay output R1A, R1B, R1C 1 C/O

Discrete output type

5 mA at 24 V DC for logic relay

Minimum switching current

2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay

2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay

3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay

4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay

Maximum switching current

U

S

Linear from 0…999.9 s

Acceleration and deceleration ramps

By DC injection, <30 s

Braking to standstill

Line supply overvoltage

Line supply undervoltage

Overcurrent between output phases and earth

Overheating protection

Short-circuit between motor phases

Against input phase loss in three-phase

Thermal motor protection via the drive by continuous calculation of I²t

Protection type

 Analog input: converter A/D, 10 bits

Display unit: 0.1 Hz

Frequency resolution

20ms +/- 1 ms for reference change

Time constant

Vertical +/- 10 degree

Operating position

151mm

Height

105mm

Width

143mm

Depth

1.1kg

Net weight



Electrical fast transient/burst immunity test – test level: level 4 conforming to EN/IEC 61000-4-4

Electrostatic discharge immunity test – test level: level 3 conforming to EN/IEC 61000-4-2

Immunity to conducted disturbances – test level: level 3 conforming to EN/IEC 61000-4-6

Radiated radio-frequency electromagnetic field immunity test – test level: level 3 conforming to EN/

IEC 61000-4-3

Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11

Surge immunity test – test level: level 3 conforming to EN/IEC 61000-4-5

Electromagnetic compatibility

EN/IEC 61800-3

EN/IEC 61800-3

Standards

IP20 without blanking plate on upper part IP41 top

IP degree of protection

2 conforming to EN/IEC 61800-5-1

Pollution degree

Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3

Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3

Environmental characteristic

15 gn conforming to EN/IEC 60068-2-27 for 11 ms

Shock resistance

5…95 % without condensation conforming to IEC 60068-2-3

5…95 % without dripping water conforming to IEC 60068-2-3

Relative humidity

-25…70 ℃

Ambient air temperature for storage

-10…55 ℃ without derating

55…60 ℃ protective cover from the top of the drive removed with current derating 2.2 % per ℃

Ambient air temperature for operation

<= 1000 m without derating

Operating altitude
