تاکومتر ,دورسنج لیزری/تماسی استروب اسکوب مدل LUTRON DT-2259 :
تاکومتر ,دورسنج یا استروب اسکوب در یک دستگاه DT-2259 که برای چرخنده هائی با سرعت بالا نظیر توربین های دوار موتورهای در حال حرکت پمپ ها و تجهیزاتی که با تاکومتر یا دورسنج تماسی یا نوری نمیتوان اندازه گیری نمود به کار میرود.این دستگاه تاکومتر ,دورسنج ساخت کمپانی LUTRON تایوان ودارای یک سال گارانتی می باشد.
مشخصات فنی اکومتر- دورسنج لیزری/تماسی استروب اسکوب دورسنج LUTRON DT-2259

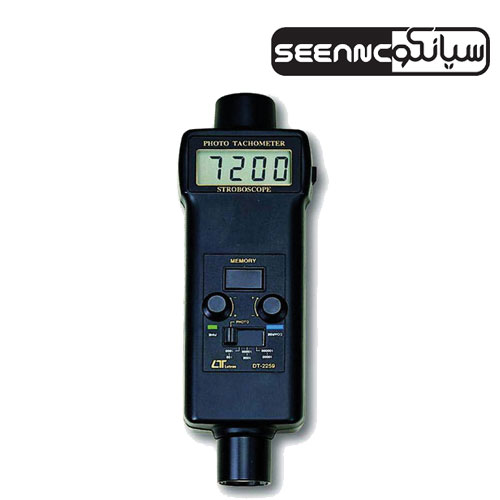

TACHOMETER/STROBOSCOPE Model : DT-2259
TACHOMETER/STROBOSCOPE, Model : DT-2259
( 2 in 1, DIGITAL PHOTO TACHOMETER with DIGITAL STROBOSCOPE )
FEATURES
* Intelligent, microprocessor circuit design, high accuracy, wide range, digital readout.
* One instrument include two functions of ” Digital Photo Tachometer ” & ” Digital Stroboscope “
Digital Stroboscope:
Wide setting range from 100 RPM to 100,000 RPM, digital display with high accuracy. Modernsolid state high visible orange light, long life, almost maintenance free. It is ideal for inspecting and measuring the speed of moving gears, fans ,centrifuges, pumps, motors and other equipmentused in general industrial maintenance, production, quality control, laboratories and as well as forschools and colleges for demonstrating strobe action.
Digital Photo Tachometer:
No contact RPM measurement, wide measuring range from 0.5 to 100,000 RPM. 0.1 RPM
resolution for the measured value < 1000 RPM. Th
e last value, max., value, min. value can be
stored into the memory automatically & be obtained by pressing ” Memory Call Button “. Highvisible LCD display gives RPM reading exactly with no guessing or errors.
*The use of durable, long lasting components, including a strong, light weight ABS plastic housing.
Cabinet has been carefully shaped to fit comfortable in either hand.
GENERAL SPECIFICATIONS
Display 5 digits, 10 mm ( 0.4″ ) LCD Operation 0 – 50 (32 – 122 ).
°C°F
( Liquid Crystal display ) with
Temperature
function annunciation.
Operating
Less than 80% RH.
Accuracy ± ( 0.1 % + 2 digit ).
HumiditySampling Time 1 second ( 60 RPM ).
Size 215 x 65 x 38 mm.
Time base :Quartz crystal. (8.5 x 2.6 x 1.5 inch).
Circuit Exclusive one-chip design
Weight 300g(0.66 LB)/including battery.
microprocessor LSI circuit.
Accessories
Carrying case ………………. 1 PC.
Battery 4 x 1.5V AA ( UM-3 ) battery.
Operation manual …………..1 PC.
ELECTRICAL SPECIFICATIONS ( PHOTO TACHOMETER )
Measurement Range 5 to 99,999 RPM
Resolution 0.1 RPM ( < 1,000 RPM ) 1 RPM ( 1,000 RPM )
Photo Tach. detecting distance 50 to 150 mm/2 to 6 inch.
*Typical max. 300 mm/12 inch depending upon ambient light.
ELECTRICAL SPECIFICATIONS ( STROBOSCOPE )
Stroboscopic 100 to 100,000 FPM/RPM Flash
tube High efficiency orange LED
Flash Rate
FPM : flash per minute
lamp.RPM : round per minute
Flash Duration Approximately 60 to 1,000
Flash Adjust 3 ranges : microseconds.
Range Range A: 100-1,000 FPM
Flash color Orange
Range B: 1,000-10,000 FPM
Flash Duration Approx. 16% of period time.
Range C: 10,000-100,000 FPM
Flash Adjust
Coarse adjust knob andResolution 0.1 FPM/RPM.
Knob:Fine adjust knob.
(Less than 1,000 FPM/RPM) Calibration Crystal time base and
1 FPM/RPM microprocessor circuit, don’t
(Over 1,000 FPM/RPM) necessary take any external
calibration process
